Aoostar Maco 6850H: Overview
The Aoostar Maco 6850H mini PC, originally known simply as the Maco, integrates a powerful eight-core workstation-grade chip into a compact, palm-sized enclosure. It boasts impressive connectivity, including three full-speed NVMe slots, dual 2.5 Gigabit Ethernet, and a pair of USB4 ports, offering significantly more options than many contemporary designs.
Despite its 2022 release, the AMD Ryzen 7 PRO 6850H platform remains capable for general desktop tasks. However, potential buyers should note that the 24GB of LPDDR5 memory is soldered and cannot be expanded. This memory operates at 6400 MT/s, organized into four 6GB banks for maximum bandwidth, which enhances both processor throughput and integrated GPU performance, allowing it to outperform some newer platforms.
The extensive connectivity, including OCuLink and two USB4 ports, further distinguishes the Maco 6850H. While its technology might appear dated at first glance, benchmark results indicate that this affordable machine performs well above its weight class, presenting a strong argument for its value among mini PCs.
Pricing and Availability
The Aoostar Maco 6850H is available starting from $459.
Two SKUs are listed for the Maco 6850H: the review configuration with 24GB of RAM and 1TB of storage, and a model without storage. The no-storage option is not currently available but could offer a better deal for users with existing NVMe drives, potentially including a free Windows 11 Pro key.
The review hardware is priced at $459 in the USA, shipped from a US warehouse, and at the same price in Germany from a local warehouse. For UK customers, it ships from China at $519. The device is also available through online retailers like Amazon, where it is listed at $479 in the US and £395 (approximately $529) in the UK.
AliExpress offers a barebones model with 16GB of RAM for £369.99, but purchasing directly from Aoostar may be more cost-effective for other configurations. Overall, considering its hardware and specifications, the Aoostar Maco 6850H presents itself as a strong value proposition.
Design and Build Quality

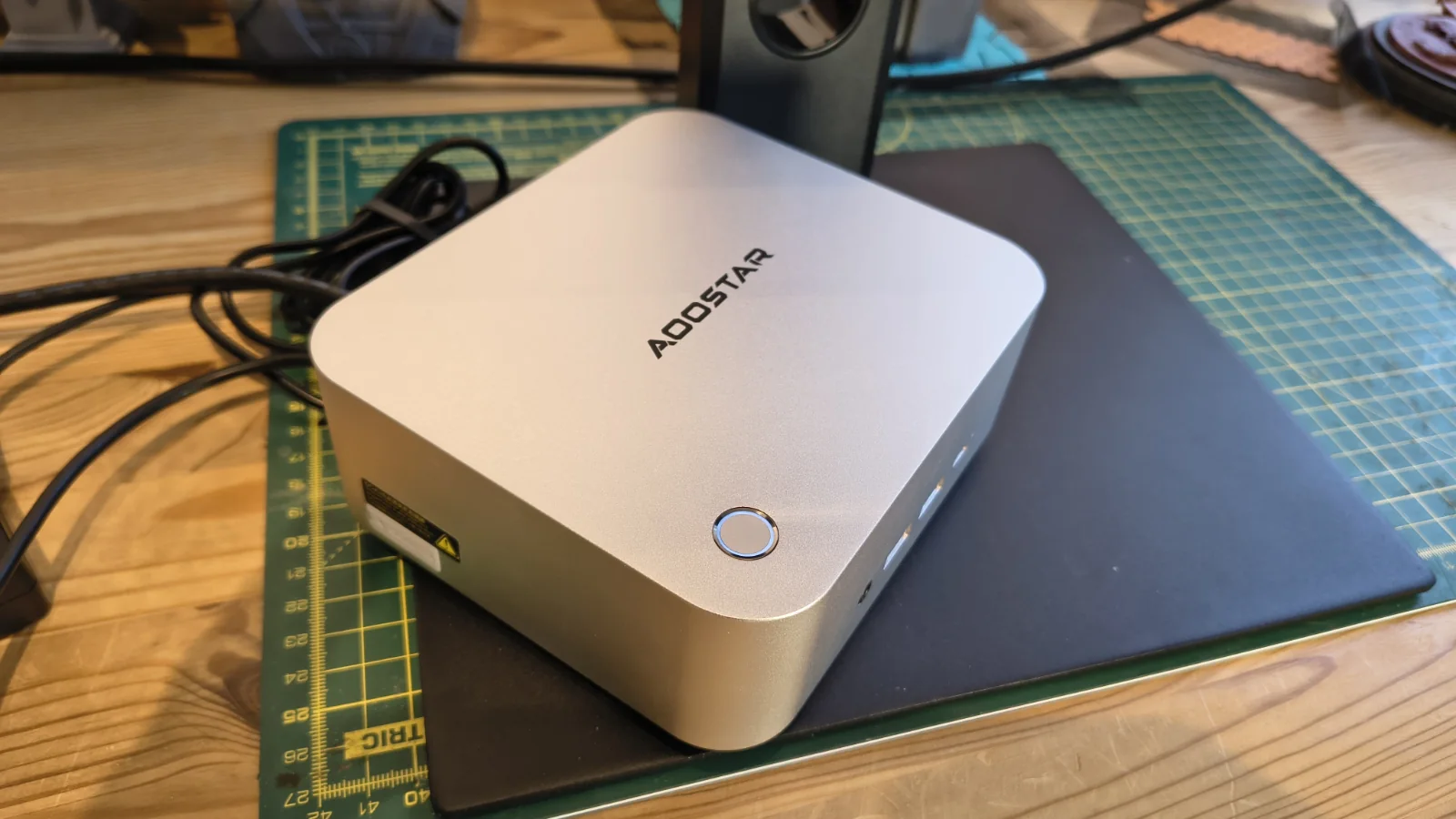

Aoostar maintains a genuinely compact footprint for the Maco, constructing it from what the company describes as 100% recycled aluminum, with only the base panel made of plastic. This approach ensures a solid exterior while managing cost and weight. A fingerprint reader integrated into the power button supports Windows Hello, a feature more common in business laptops, aligning with the device's positioning as a small workstation.

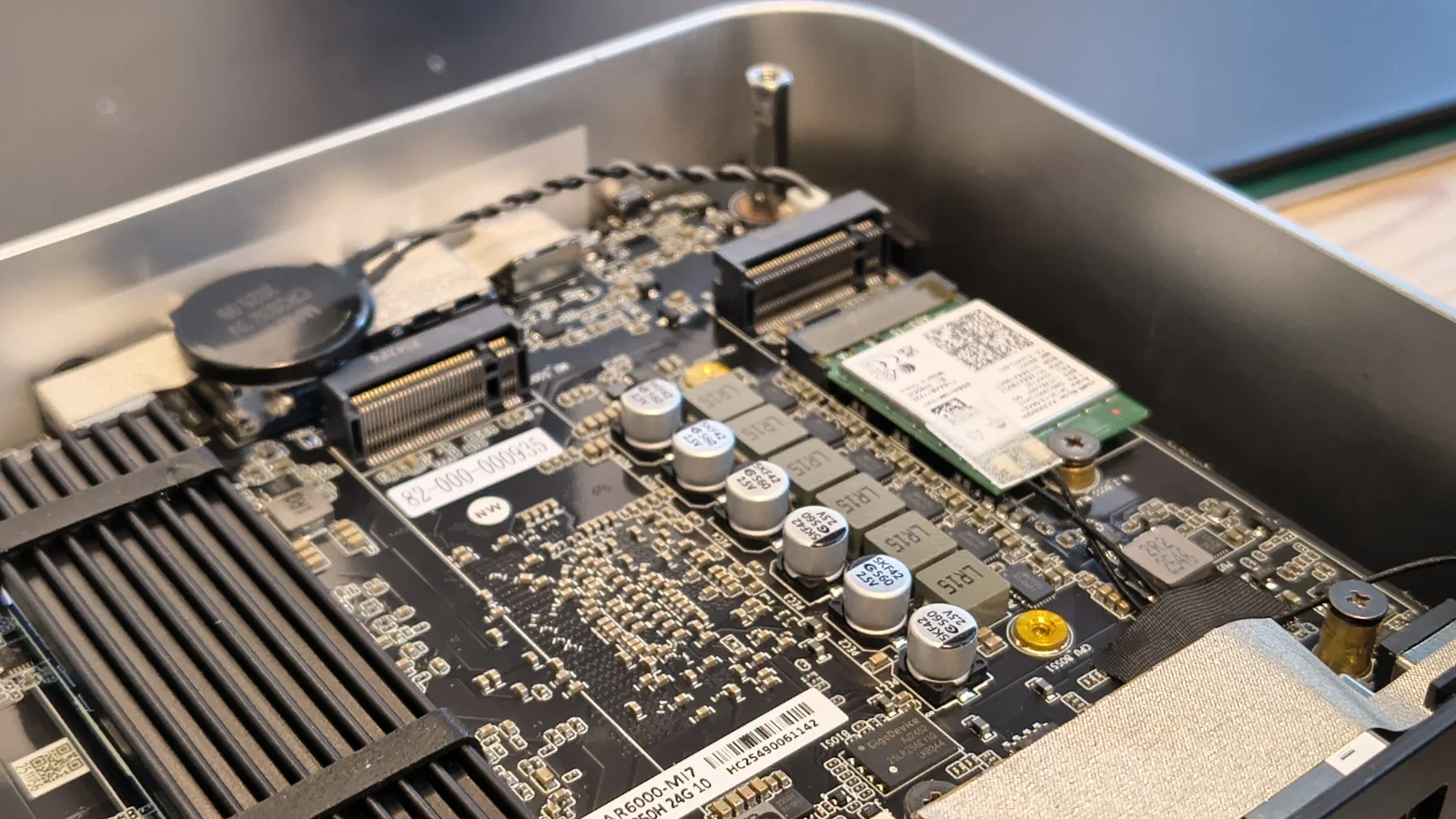

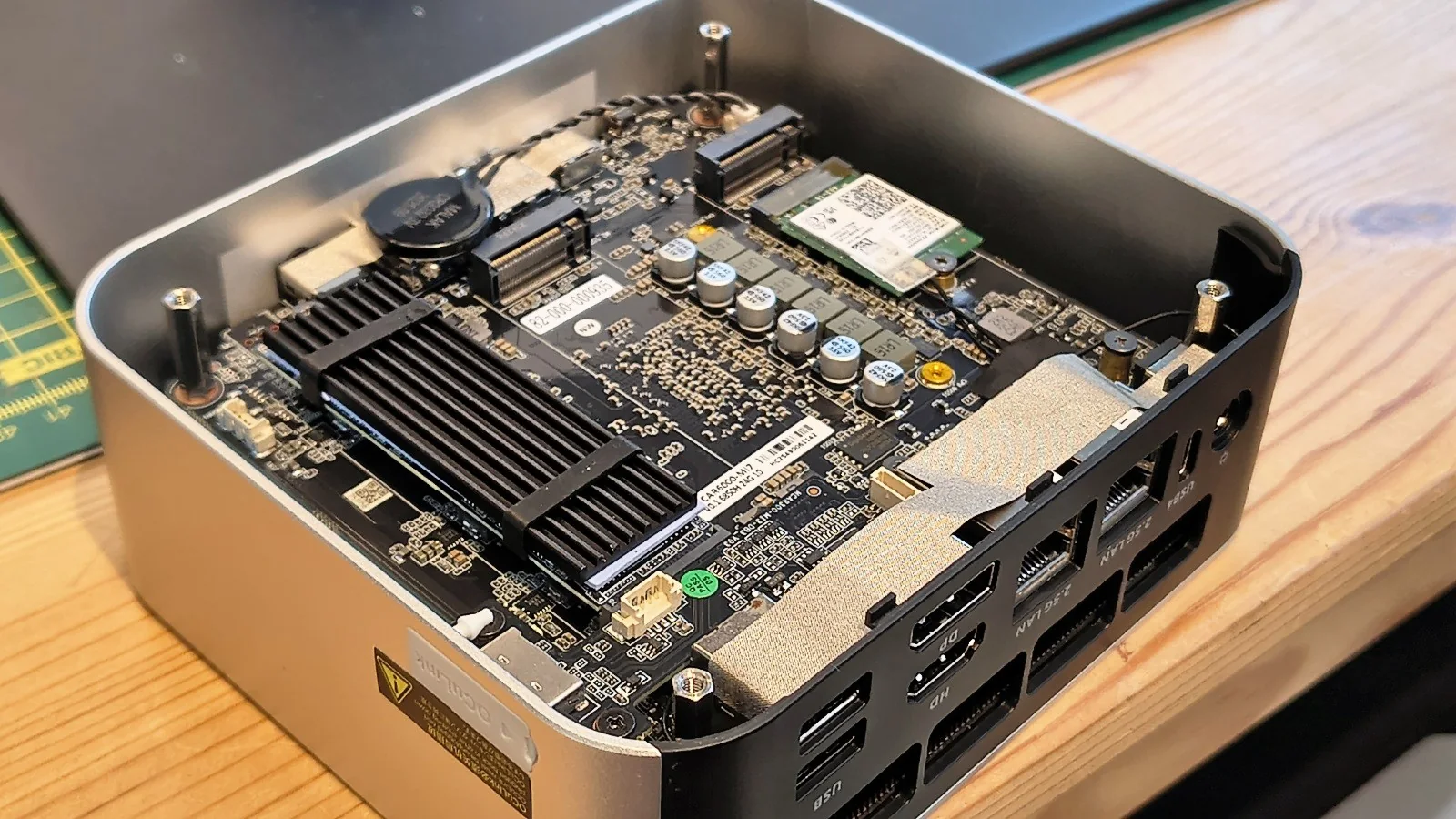

Measuring 150 x 132 x 57mm, the Maco 6850H is on the larger side for a NUC but remains far from massive. A minor drawback is the absence of a VESA plate for monitor mounting. Internal access is straightforward, requiring the removal of just four base screws. While memory is not socketed, the system features four M.2 slots, two of which are available for expansion, all supporting Gen4 x 4 specification.

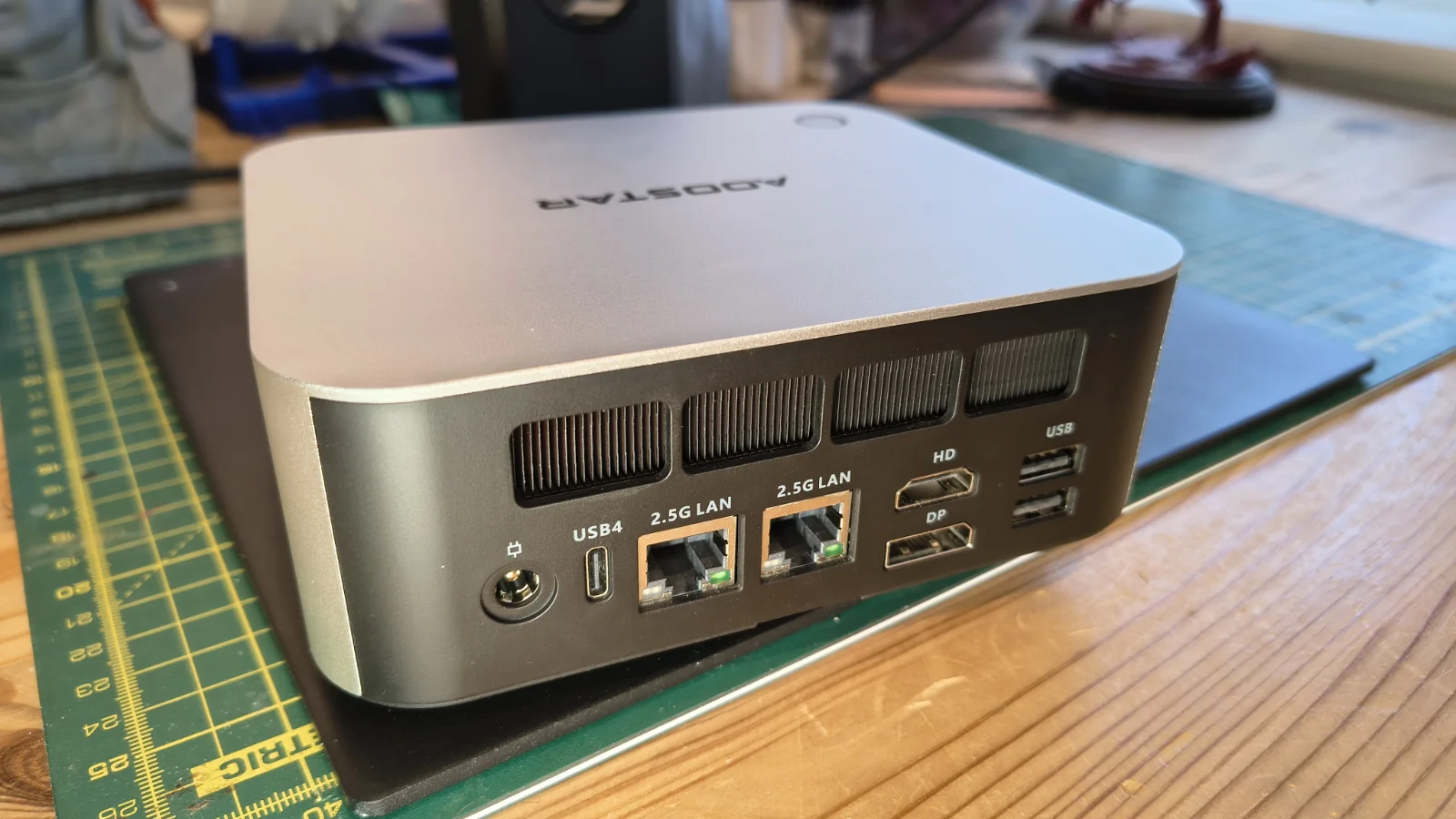

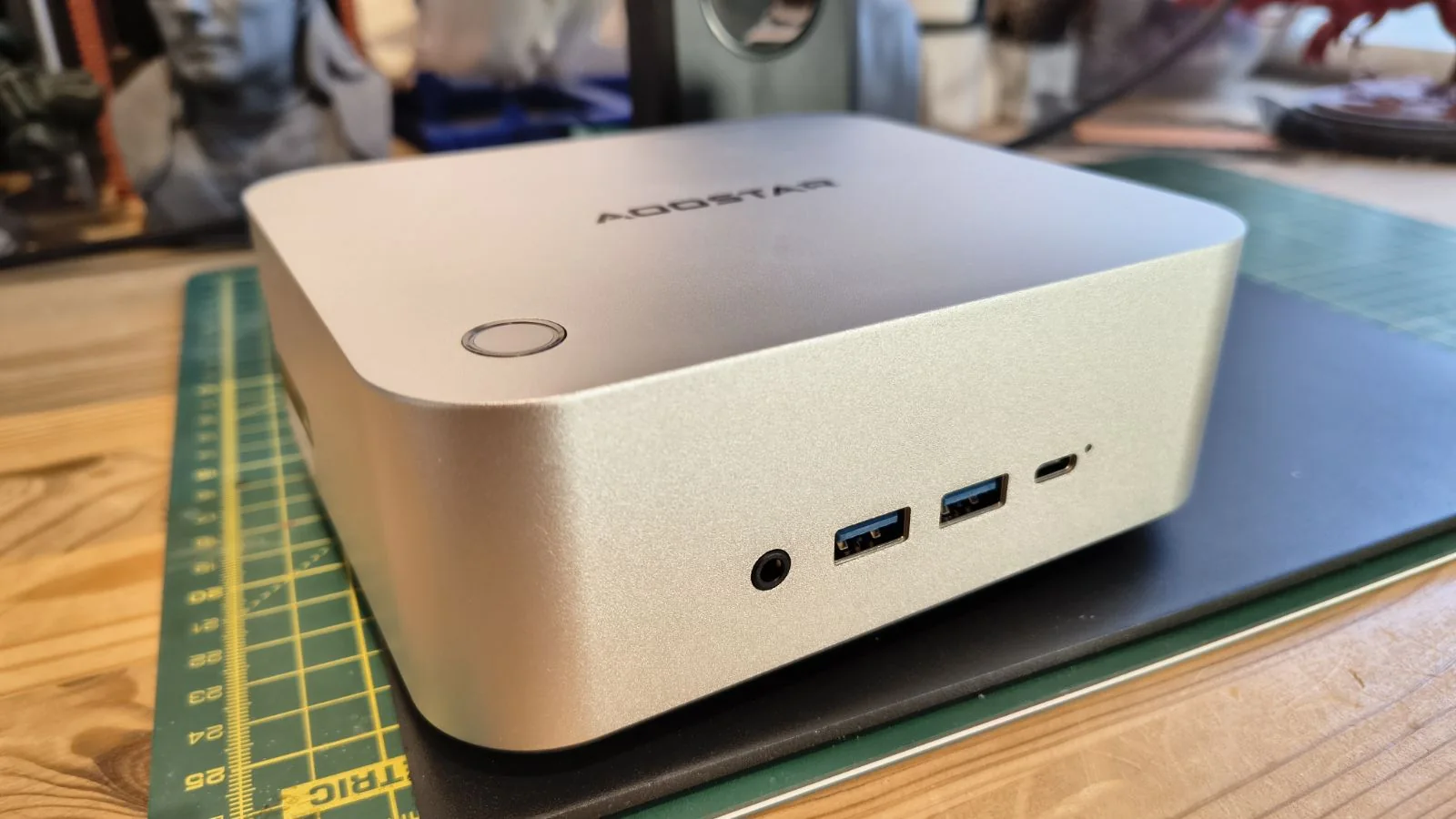

This extensive internal storage capability makes the machine suitable for use as a high-performance mini server, complemented by external I/O that includes dual 2.5GbE LAN ports and USB 4.0. The port layout features an audio jack, two USB 3.2 Gen 2 ports, and a USB4 on the front; an OCuLink port on the left side; and another USB4 on the back, alongside HDMI, DisplayPort, and the LAN ports.
The source review notes that the two rear USB ports, labeled generically as “USB,” were found to function as USB 2.0, despite Aoostar's webpage indicating one as USB 3.2 Gen 1. Additionally, none of the front ports are labeled. While an SD card slot is absent, the existing ports are well-suited for use with a docking station, which often provides this feature.
Core Features
At the core of the Maco 6850H is the AMD Ryzen 7 PRO 6850H processor, codenamed Rembrandt, which debuted in business laptops in 2022. This chip features eight Zen 3+ cores and sixteen threads, with a base clock of 3.2GHz boosting up to 4.7GHz, all within a 45W thermal envelope. The PRO designation adds Microsoft Pluton security and remote management capabilities, targeting business users.
Built on a 6-nanometer TSMC process, Zen 3+ is an evolution of the Zen 3 architecture. While not the latest Zen 4 or newer, its eight cores and sixteen threads still provide substantial compute power for a small form factor desktop, competing effectively against many newer six-core parts in multi-threaded workloads.
Graphics are handled by the Radeon 680M, an RDNA2-based integrated GPU with twelve compute units clocked up to 2.2GHz. Although newer integrated GPUs like the 780M, 880M, and 8060S have since surpassed it, the 680M remains capable of light gaming and everyday creative tasks, especially when paired with fast memory.
Integrated graphics performance heavily relies on system memory bandwidth, as there is no dedicated video memory. Aoostar addresses this by fitting 24GB of LPDDR5 running at 6400MHz, allowing the 680M to perform better than it would on slower DDR5 or DDR4 systems. The trade-off is that this memory is soldered and non-expandable.
Storage is a key differentiator for the Maco 6850H, featuring three M.2 2280 slots wired for full PCIe 4.0 x4 bandwidth, supporting a combined total of up to 24TB. This generous allowance positions the MACO as a viable small NAS or media server, in addition to being a desktop replacement.

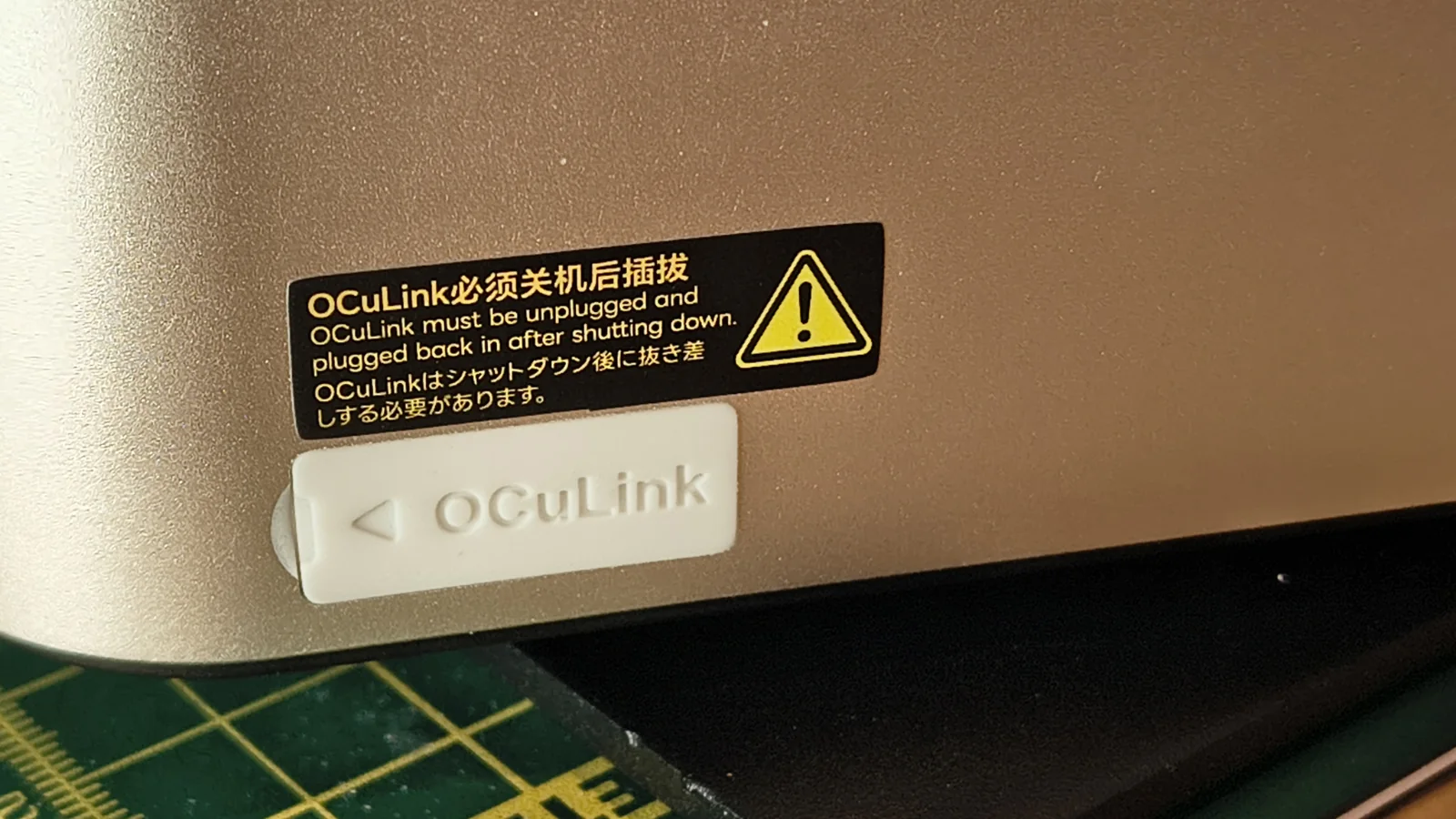

Networking capabilities include dual 2.5 Gigabit Ethernet ports with Intel I226V controllers, Wi-Fi 6, and Bluetooth 5.2. External expansion is rounded out by two USB4 ports and an OCuLink connector, the latter designed for attaching external GPUs with minimal signal loss compared to USB4 connections.
Performance Analysis
Despite the AMD Ryzen 7 PRO 6850H being a previous-generation CPU, it demonstrates reasonable agility. Comparisons with an AMD Ryzen 9 PRO 6950H, a chip from the same generation, reveal similar performance levels. The 6400 MT/s LPDDR5 memory significantly contributes to the Maco 6850H's strong performance.
While newer Intel mobile processors with Arc Graphics offer faster performance, they generally come at a higher price point. The inclusion of a capable Gen4 x4 NVMe drive, with read speeds exceeding 7000MB/s and write speeds of 3500MB/s, also significantly boosts performance in benchmarks like PCMark.
Given the current market's price increases for newer components, the Aoostar Maco 6850H stands out as a solid choice for users seeking above-entry-level performance within a modest budget.
Final Verdict
In a PC industry marked by fluctuating memory and storage prices, the Aoostar Maco 6850H offers a compelling argument for considering slightly older technology that still delivers ample performance for Windows 11 and a range of demanding applications.
This machine provides strong justification for not immediately investing in the absolute latest technology. Unless high-end gaming or similarly intensive tasks are a primary requirement, the Maco 6850H offers plenty of performance. Furthermore, for users needing enhanced graphics or AI capabilities, the OCuLink port allows for the addition of a discrete video card without needing a full desktop system.
Considering its performance and price, the Aoostar Maco 6850H emerges as a robust choice for a wide array of interactive computing tasks.
