Key Features and Specifications
The Innocn E49M1R features a 5120 x 1440 VA panel, commonly known as DQHD, which is equivalent to two 27-inch QHD monitors seamlessly joined. It boasts a 165Hz refresh rate and a 2ms overdrive response time, making it suitable for users managing financial dashboards, editing long video timelines, or gaming without distorted visuals.
Its Mini LED backlighting system incorporates 1760 local dimming zones, a significant number for a monitor of this size and price. This is complemented by HDR1000 certification, a typical brightness of 450 nits, and a claimed peak brightness exceeding 1000 nits for HDR content. This configuration aims to provide strong highlights and deep shadows, avoiding the washed-out blacks sometimes seen in less advanced Mini LED displays.
The monitor also offers robust color coverage, with near-complete sRGB coverage and substantial claims for Adobe RGB and DCI-P3 spaces. This indicates a panel designed for broader applications beyond just gaming, though not necessarily for professional design tasks.

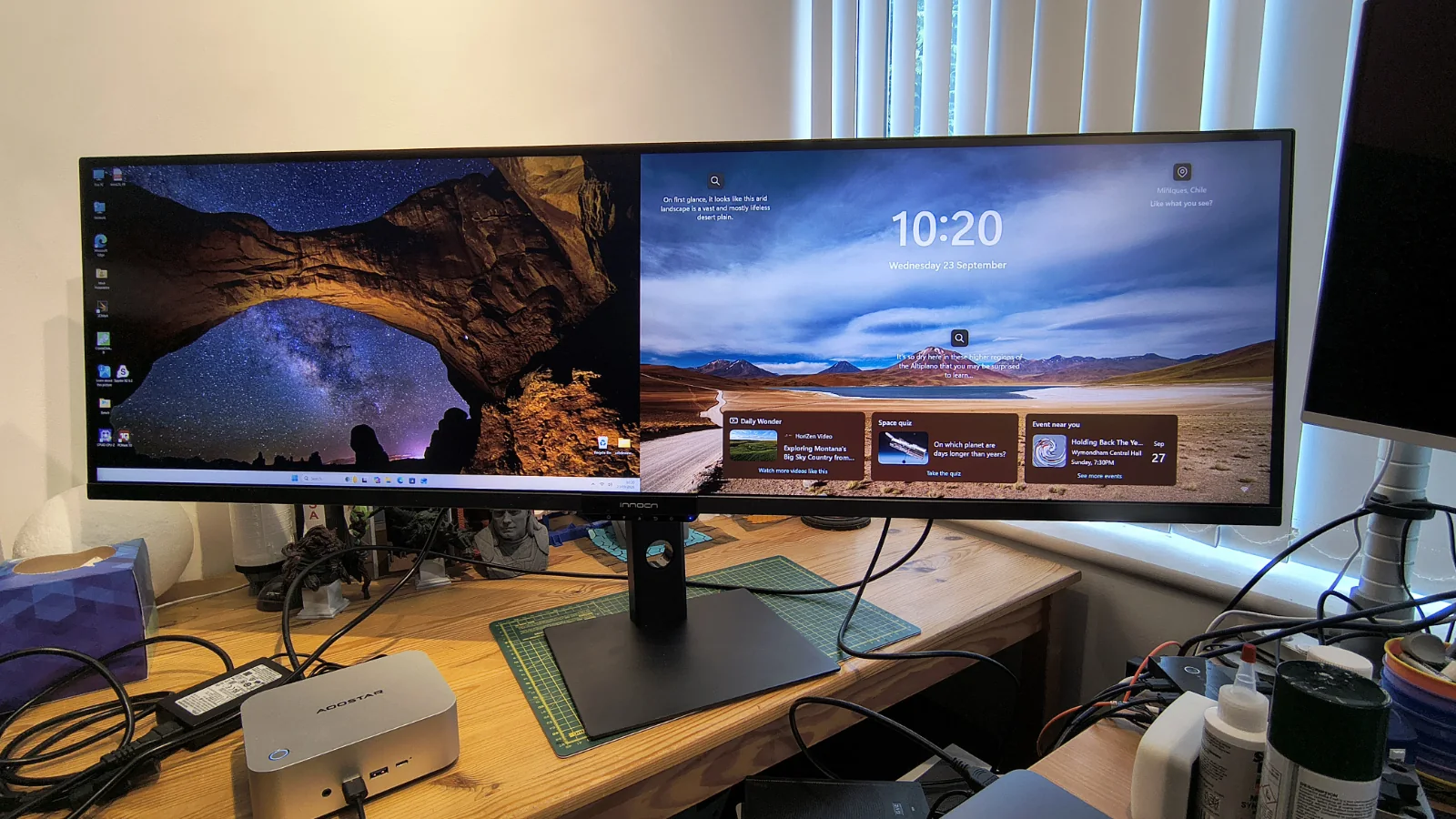

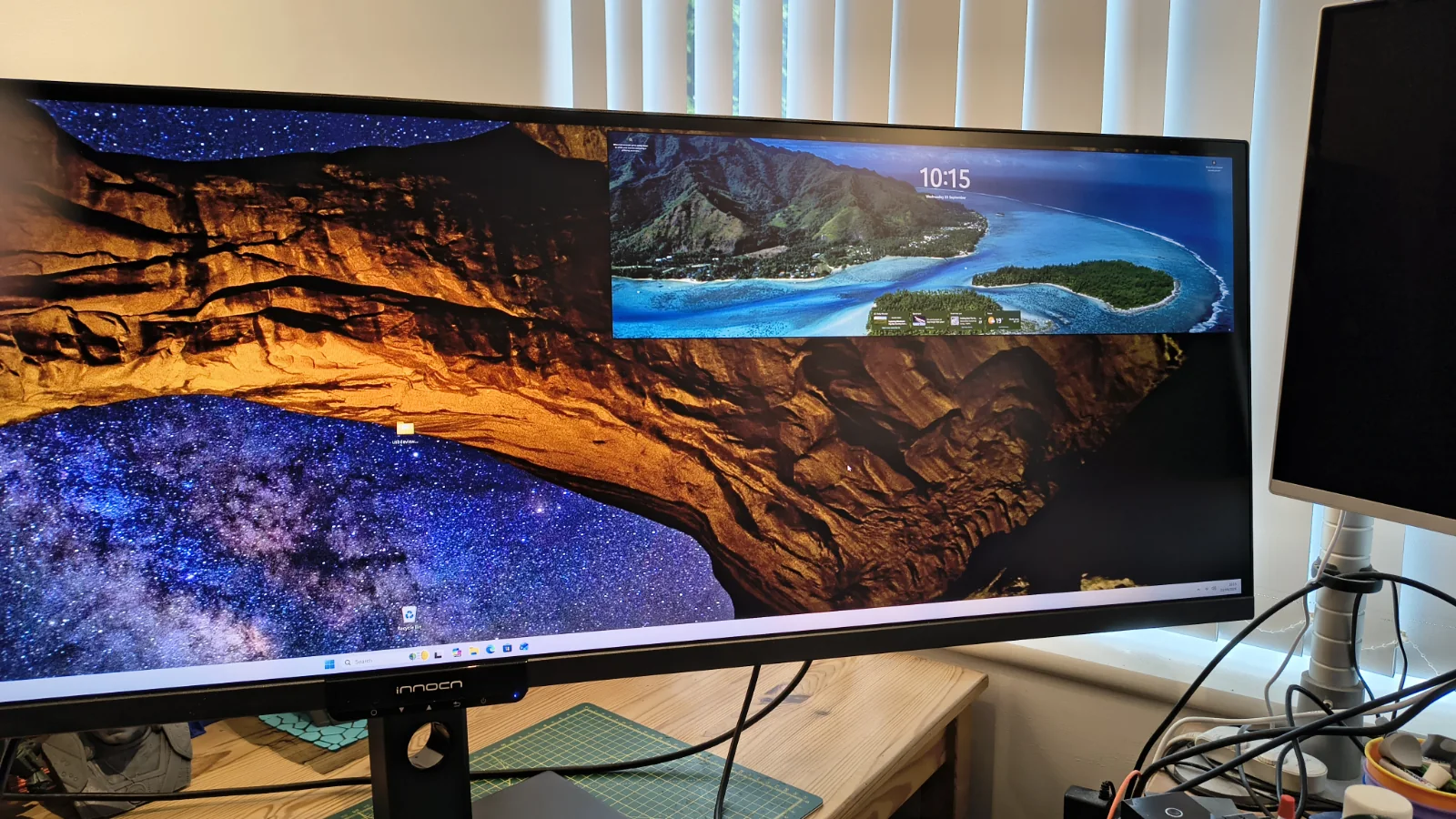

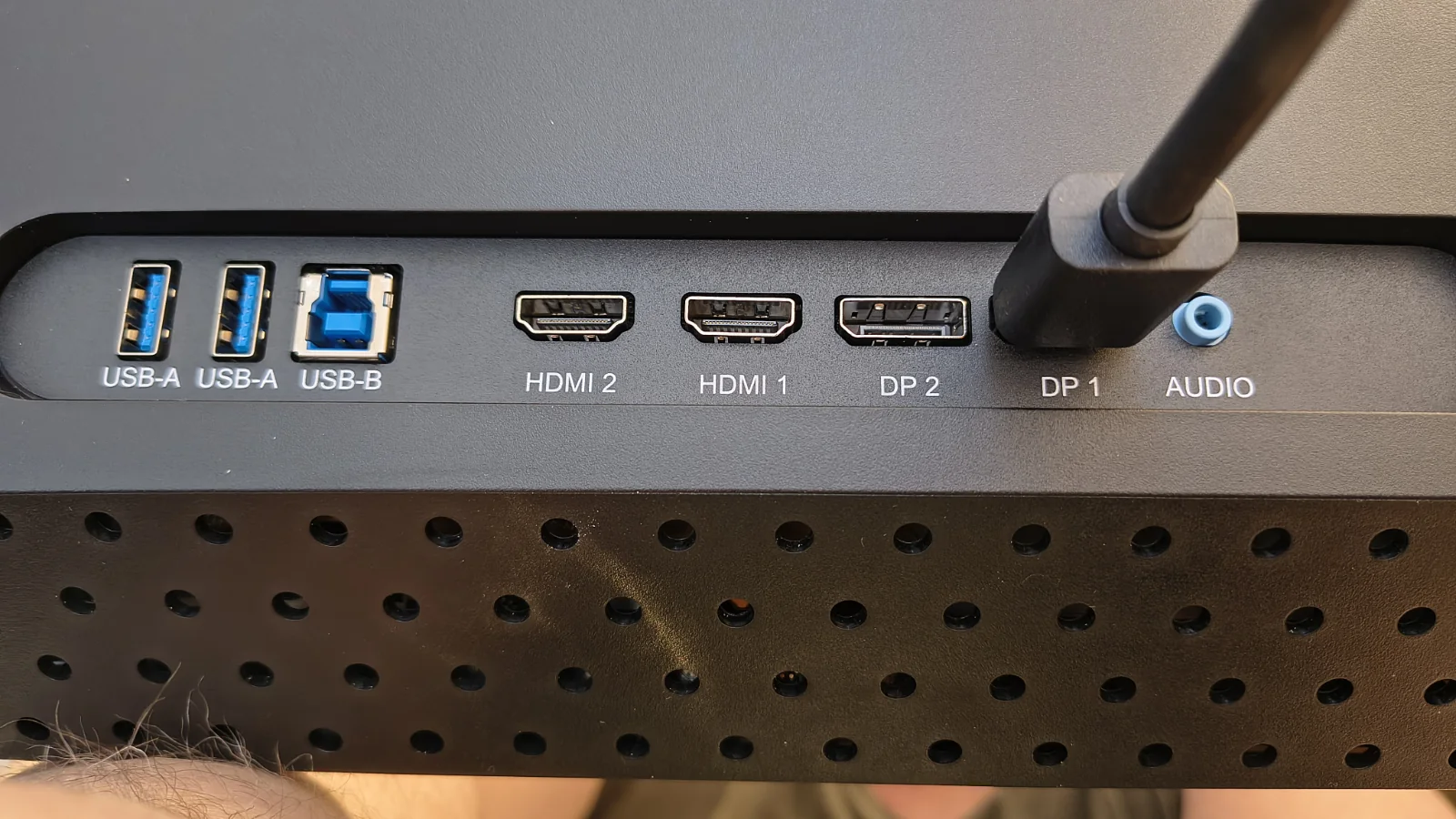

Connectivity options include two HDMI 2.1 ports and two DisplayPort 1.4 inputs, providing flexibility for connecting various devices like desktops, laptops, or consoles. The monitor supports displaying all four inputs simultaneously or utilizing various picture-in-picture modes.
Additional features include a USB hub, integrated twin 5W speakers, and support for AMD FreeSync.
The included stand provides 120mm of height adjustment, a tilt range from -5 to +15 degrees, and 15 degrees of swivel. A pivot option is absent, which is practical for such a wide panel. Weighing 13.3kg with the stand, the E49M1R is best suited for a fixed desk position.
Priced at $999.99 in the US, the E49M1R competes with existing 49-inch ultrawide monitors from brands like Samsung and LG, many of which are curved and priced similarly or higher.
Design and Ergonomics

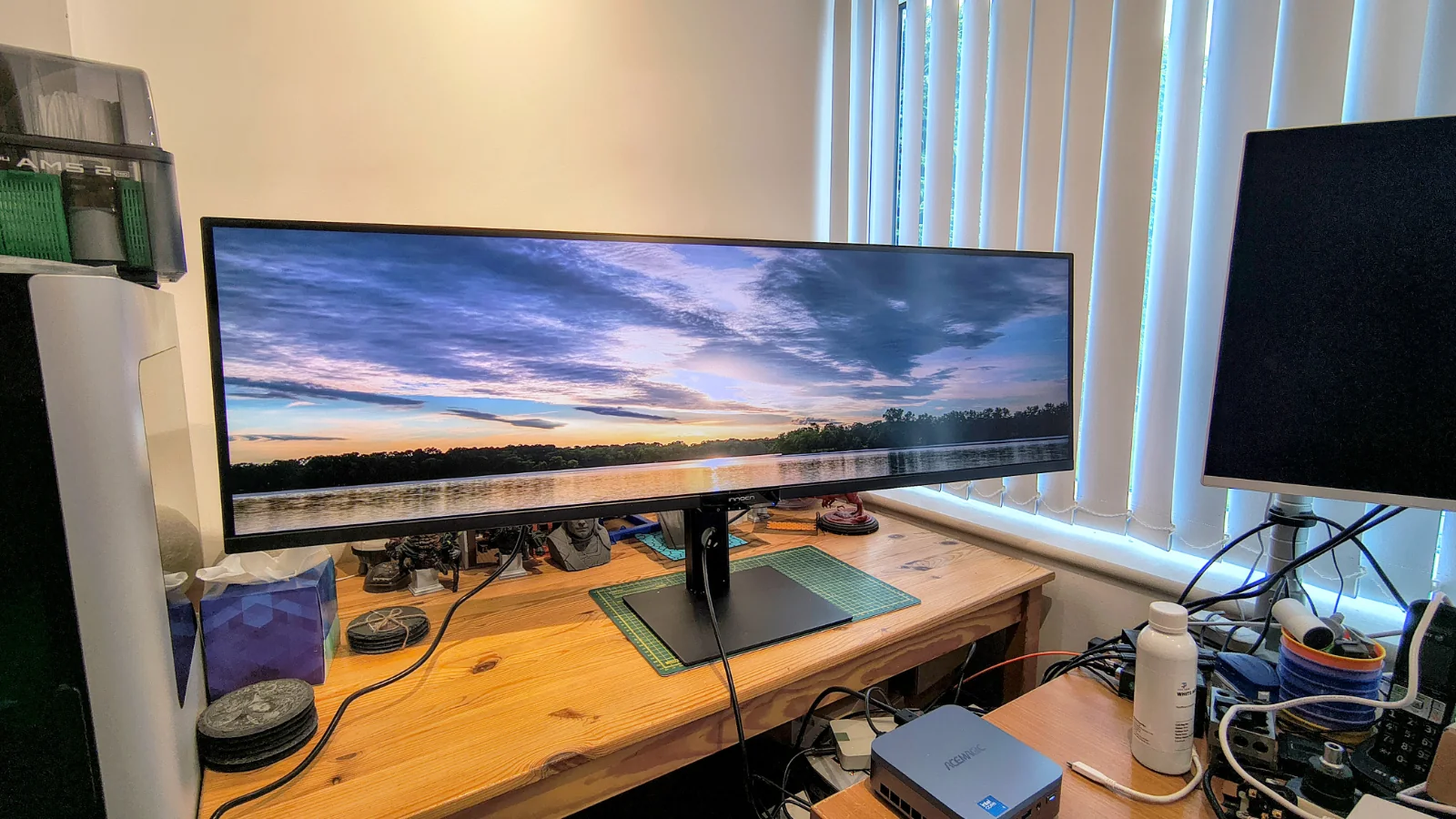

Unlike most 49-inch ultrawide monitors that feature a curved panel for improved viewing angles, the Innocn E49M1R maintains a flat design.
This flat panel design is a key differentiator, ensuring straight lines remain undistorted, which is crucial for tasks like aligning spreadsheet columns, CAD drawings, or video timelines across the expansive screen.
While a similar 5120 x 1440 resolution can be achieved with two 27-inch 1440p displays at a lower cost, the E49M1R offers a single, seamless viewing experience for users who prefer it.
A consequence of the flat design at this size is that the screen's edges are noticeably further from a centrally positioned viewer compared to the middle.
For instance, if a user is 75cm from the center of the panel, the left and right edges are approximately 20cm further away.
The source reviewer notes that this viewing distance variation may or may not be an issue, depending on individual visual adaptability.
The source review suggests that users might need to adjust their desk or seating position to comfortably view different sections of the screen, particularly when monitoring multiple elements.
The monitor features impressively narrow bezels on the top and sides, allowing the display to dominate the visual experience.

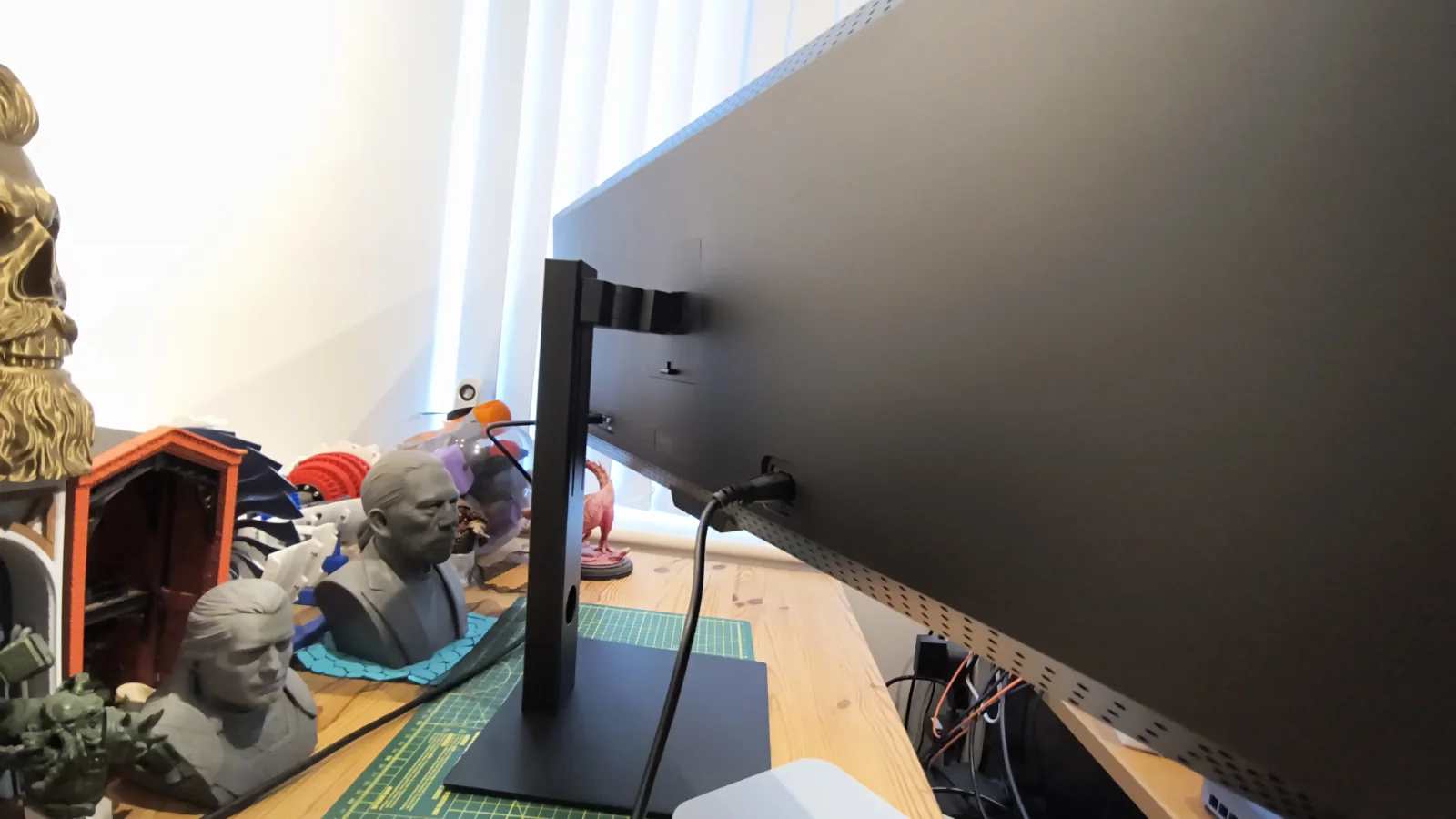

The stand offers 120mm of height adjustment, a tilt range of -5 to 15 degrees, and 15 degrees of swivel. A pivot function is absent, which is practical for such a wide panel. It includes a VESA 100 mounting point, but any alternative support must accommodate the E49M1R's considerable weight.
Weighing 13.3kg with the stand, the monitor is not designed for frequent repositioning and may require assistance to move.

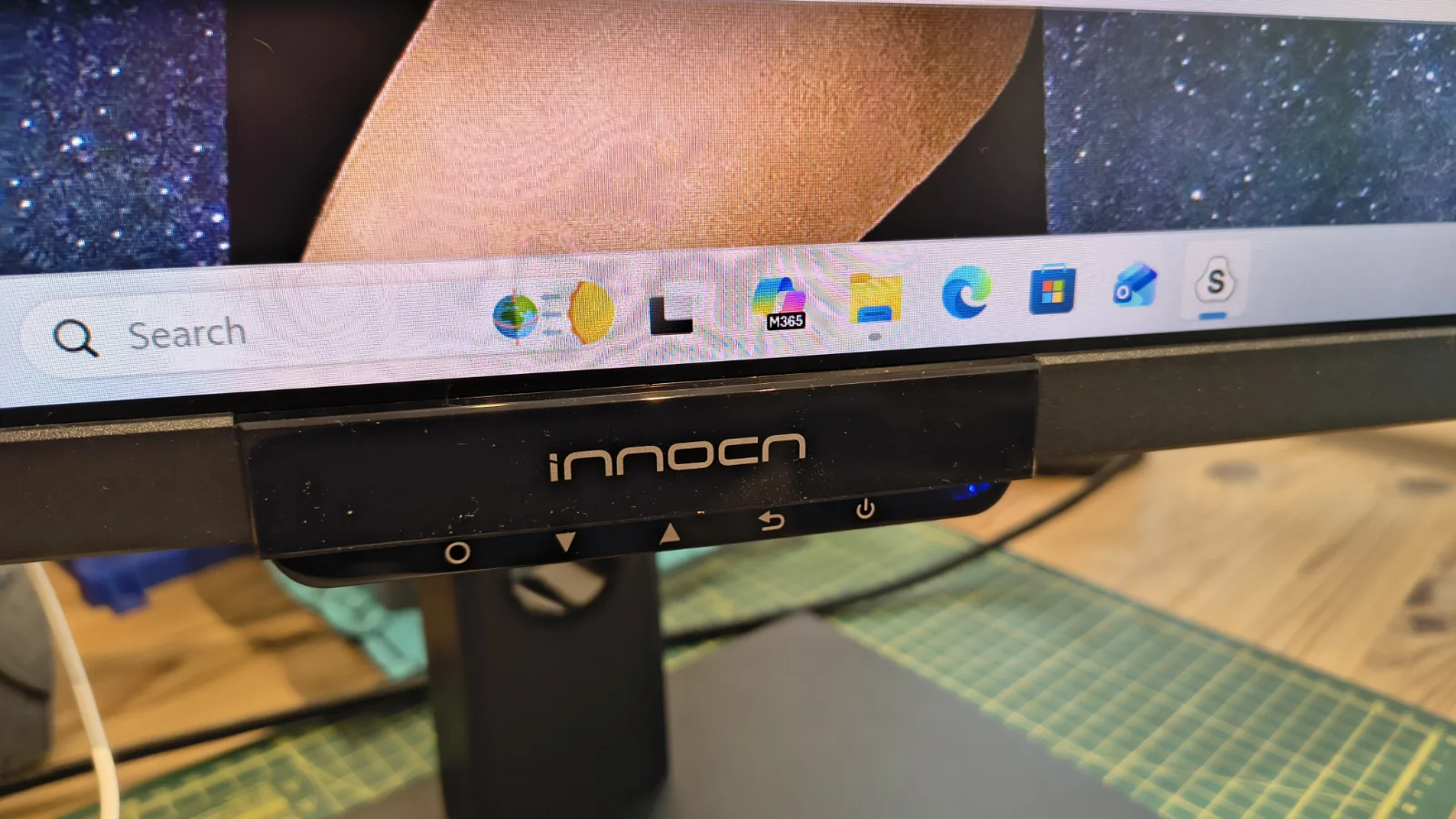

The monitor's settings are controlled via five physical buttons located beneath the central Innocn logo, navigating an on-screen menu.
The source reviewer expressed frustration with this button-based menu system, noting it requires numerous clicks for changes that could be simpler with software control. Despite this, all key features are accessible through this menu.
While the design itself is not revolutionary, it effectively serves the monitor's underlying advanced technology.
Despite the inherent awkwardness of its large size, the monitor generally performs as intended and offers a highly satisfying experience for specific applications.
The source reviewer noted that while the screen is ideal for managing multiple systems due to its simultaneous input display, the absence of an integrated KVM switch is a missed opportunity, especially given the inclusion of a USB hub.
An integrated KVM, even for two computers with a hotkey switch for USB peripherals, would significantly enhance its utility, offering a more streamlined solution than a separate KVM.
Key design weaknesses include the limited adjustability of the stand and the absence of a software control panel, which necessitates using small physical buttons for menu navigation.
Despite these minor flaws, the monitor remains a solid product in most aspects.
Display Performance

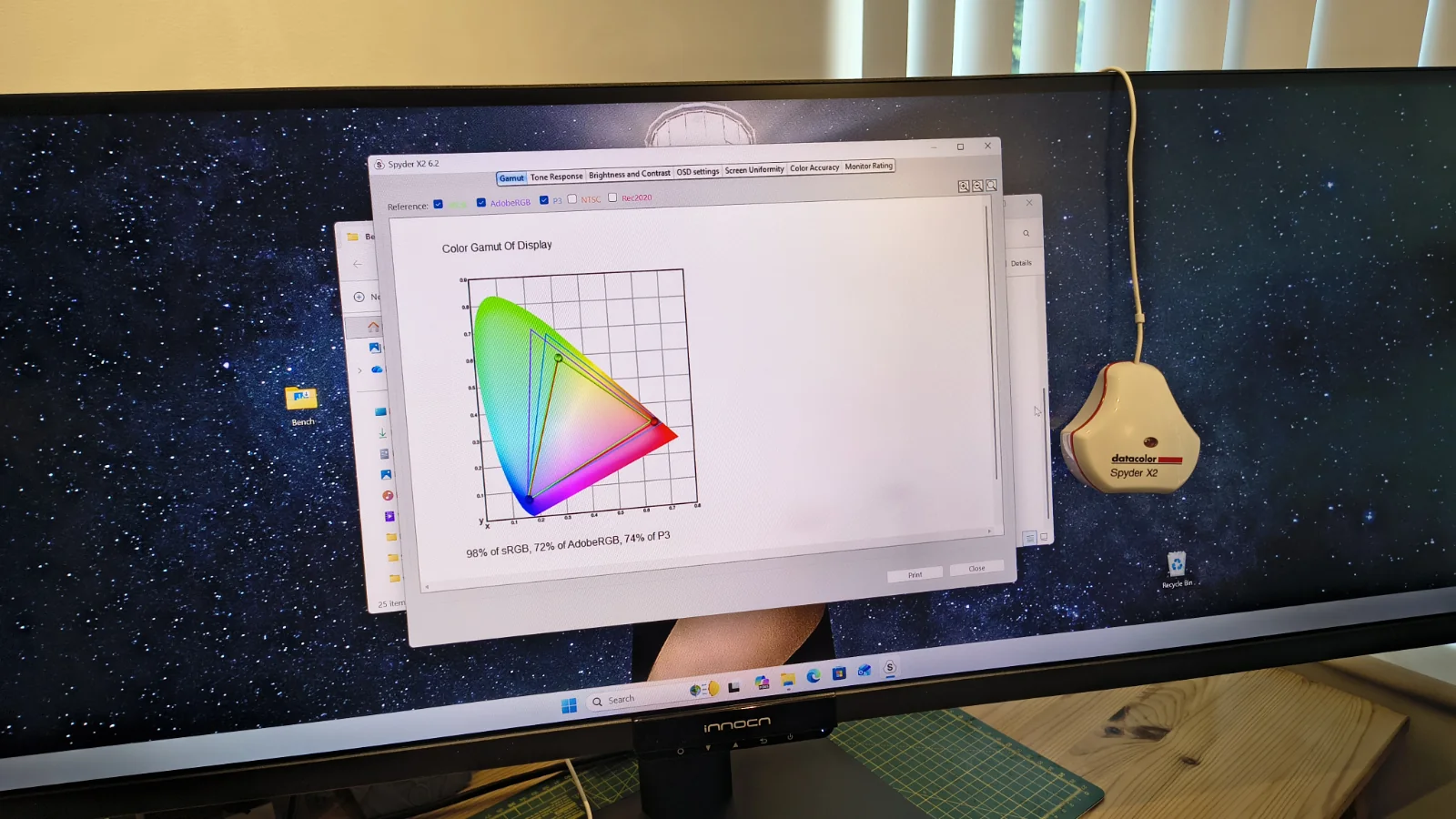

The source reviewer highlighted color gamut and contrast as exceptional, noting the display's ability to render a wide range of colors with excellent contrast between bright and dark areas, resulting in a highly readable and vibrant chromatic experience. This performance was observed despite the monitor's 8-bit VA panel specification.
The measured brightness was found to exceed the manufacturer's quoted 450 nits, which is noteworthy as quoted brightness figures are often optimistic.
The E49M1R's performance is underpinned by its contrast, achieved through 1760 local dimming zones on a VA panel with a native contrast ratio of 3000:1. This granular backlight system aims to deliver deeper blacks and brighter highlights in HDR content, minimizing the blooming effect common in less sophisticated dimming grids.
Regarding color, Innocn claims nearly full sRGB coverage, extensive Adobe RGB and DCI-P3 coverage, and a Delta E accuracy target below two. While these figures suggest suitability for color-critical tasks beyond typical gaming monitors, the source review found the reality to be more complex.
Despite a wide color gamut, the source reviewer noted that color accuracy is not optimal, making the monitor less suitable for professional design work where precise colors are essential. While some calibration might improve accuracy, it is unlikely to match the performance of an OLED panel.
For motion, the monitor features a 165Hz refresh rate, a 2ms overdrive response time, and AMD FreeSync support, ensuring smooth rendering of fast-moving content. It is important to note that no G-Sync compatibility claim is made, which may affect Nvidia users.
The source review concludes that for users requiring an ultrawide display for tasks such as monitoring multiple systems, managing large spreadsheets, motion graphics, or flight/racing simulators, the E49M1R is an excellent choice.
While color inaccuracy is a drawback for critical design work, the source reviewer points out that this is not the primary use case for most ultrawide monitor buyers.
