Introduction
The Thunderbolt 5 market is expanding rapidly with new entrants. We are evaluating two sub-$400 options: the VectoTech V-Core and the Orico TB5, both featuring internal M.2 slots and 2.5 GbE networking.
The VectoTech V-Core ($349) and Orico TB5 ($399) offer similar feature sets on paper, but our testing reveals distinct differences in build quality and real-world performance.

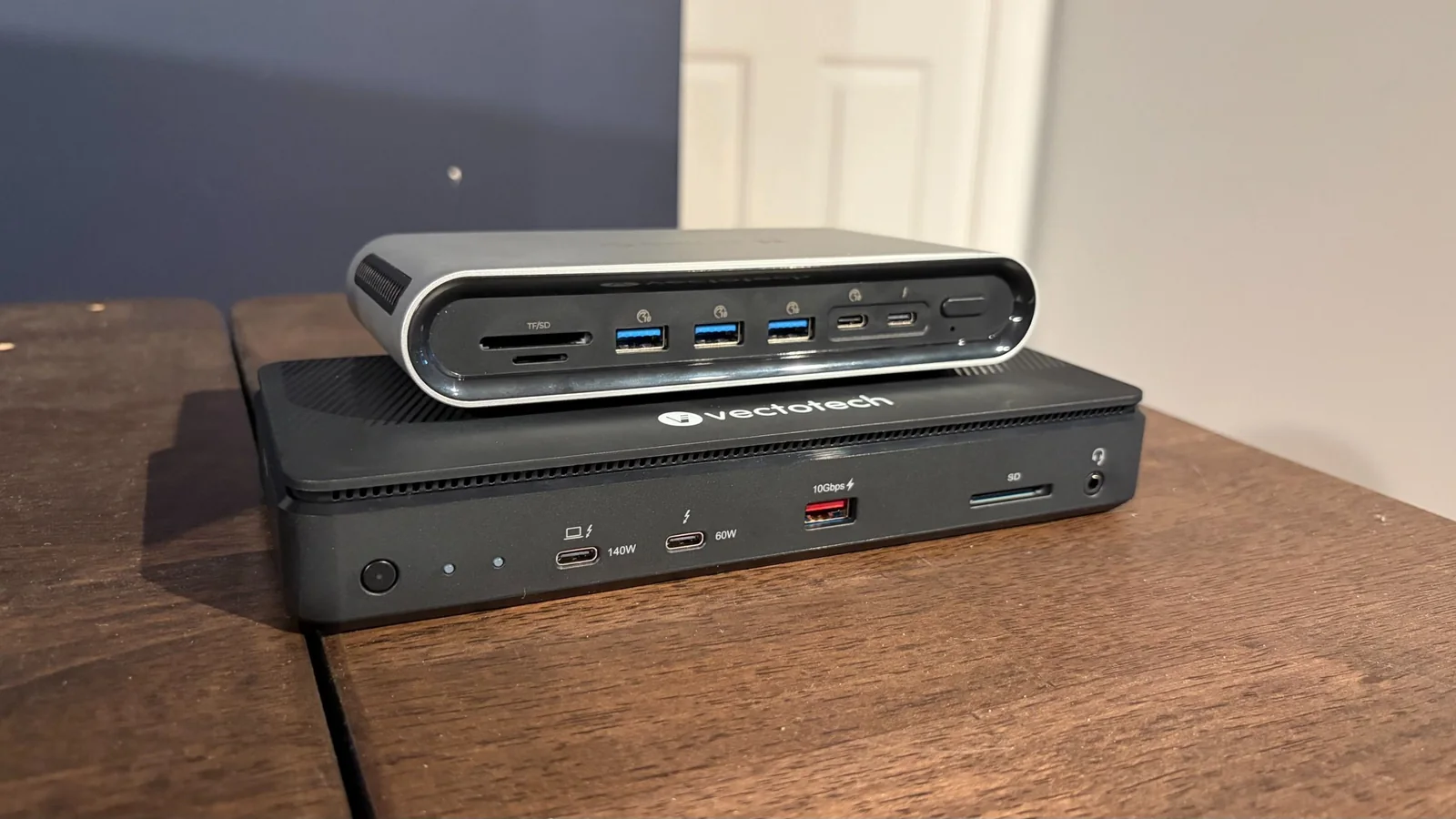

Design of the VectoTech V-Core Thunderbolt 5 Dock
The V-Core features a traditional candybar form factor. While it appears to be aluminum, it is constructed almost entirely of plastic, which is unusual for a Thunderbolt dock that requires heat dissipation.
The top cover uses a friction fit, which felt loose during testing. Internally, the dock includes a cooling fan and a heatsink for the M.2 slot.
Accessing the M.2 slot requires removing the heatsink, which is secured by screws. The SSD is held in place by a small plastic clip rather than a standard screw.
The plastic retaining clip feels less secure than traditional mounting methods, though VectoTech does include thermal pads for the SSD.
The V-Core lacks native HDMI or DisplayPort, requiring users to purchase separate adapters for monitor connectivity.
Front ports include a Thunderbolt 5 upstream, a Thunderbolt 5 downstream, a USB-A 3.2 Gen 2 port, an SD UHS-II slot, and an audio jack.
1x Thunderbolt 5 upstream (80 Gbps bi-directional, 140W)
1x Thunderbolt 5 downstream (80 Gbps bi-directional, 60W)
1x USB-A 3.2 Gen 2
1x SD UHS-II slot
1x audio combo jack
Back
2x Thunderbolt 5 downstream (80 Gbps bi-directional, 15W)
2x USB-A 3.2 Gen 2
1x USB-A 3.2 Gen 1
1x 2.5 GbE (RJ45) port
1x 240W power port
The rear of the V-Core features three additional USB-A ports, two downstream Thunderbolt 5 ports, and a 2.5 GbE port.
Design of the Orico TB5 Thunderbolt 5 Desktop Workstation
The Orico TB5 is constructed from a single piece of thick aluminum, providing a more premium feel and better heat management than the V-Core.
The front and rear fascias are plastic, housing a comprehensive array of ports.
Front
3x USB-A 3.2 Gen 2
1x Thunderbolt 5 downstream (80 Gbps bi-directional, 60W)
1x SD UHS-II slot
1x microSD UHS-II slot
1x audio combo jack
Back
1x Thunderbolt 5 upstream (80 Gbps bi-directional, 140W)
1x Thunderbolt 5 downstream (80 Gbps bi-directional, 60W)
1x HDMI
1x DisplayPort
1x 2.5 GbE (RJ45) port
1x 240W power port
The Orico TB5 includes a robust port selection: SD and microSD slots, multiple USB-A and USB-C ports, Thunderbolt 5 connectivity, DisplayPort, HDMI, and 2.5 GbE.
The inclusion of both HDMI and DisplayPort makes the Orico TB5 significantly more versatile for workstation setups.
A standout feature is the magnetic M.2 access door on the underside, which allows for tool-less SSD installation.
Testing the VectoTech V-Core and Orico TB5 Thunderbolt 5 Docks
Both docks performed reliably with various peripherals. The V-Core required adapters for video output, but maintained stable connections at high refresh rates.
The V-Core enclosure became quite hot under load, raising concerns about long-term heat soak despite the internal fan.
The Orico TB5 also includes a cooling fan and operated without performance issues across all tested connections.
Both docks successfully handled a variety of USB devices and network traffic on our 2.5 GbE test network.
In storage benchmarks, the V-Core trailed other Thunderbolt 5 docks, while the Orico TB5 performed near the top of the pack in sequential write speeds.
Both docks achieved expected 2.5 GbE throughput, maxing out at approximately 2,300 Mbps.
Bottom Line
The Orico TB5 is the superior product, offering a premium aluminum build and significantly easier M.2 access compared to the VectoTech V-Core.
With native video outputs and faster storage performance, the Orico TB5 provides a more complete workstation solution.
While the VectoTech V-Core is cheaper, the Orico TB5's advantages in design, port selection, and throughput justify the $50 price difference.
